G941J electric rubber lined diaphragm valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
The opening and closing parts of the internal thread diaphragm valve are a piece of diaphragm made of soft material, which separates the inner cavity from the inner cavity of the valve cover and the driving parts. The diaphragm made of rubber or plastic soft seal has better sealing performance. Because the diaphragm is a fragile part, it should be replaced periodically according to the characteristics of the medium. Internal threaded diaphragm valves are used for medium containing hard suspended solids; since the medium of internal threaded diaphragm valves only contacts the valve body and diaphragm, there is no need for packing boxes, no leakage of packing boxes, and no corrosion to the stem.
Design and manufacture: BS5156
Structure length: BS5156
Flange joint dimensions: BS4504, DIN2532, JIS B2212, ANSI B16.1, ISO2004
purpose
This valve is specially designed to control general corrosive media, and can be used for opening and closing and throttling of various pipelines or equipment.
Applicable temperature: less than 120 degrees C, or less than 150 degrees centigrade (in accordance with diaphragm material)
Pressure level: PN (MPa) 0.6 1 1.6
Material Science
Body: cast iron, ductile iron, carbon steel, stainless steel.
Bonnet: cast iron, ductile iron, carbon steel, stainless steel.
Diaphragm: Rubber
Disc: cast iron and stainless steel
Stem: carbon steel, stainless steel
Hand wheel: Cast Iron
test
Lining layer: EDM test
Test and inspection according to BS6755 standard
Nominal pressure: PN (MPa)
Valve body: PN * 1.5
Sealing: PN x 1.1

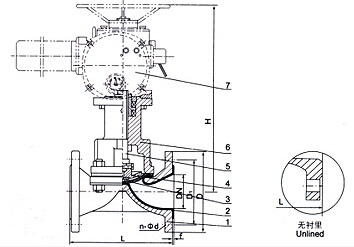

Parts list: 1. valve 2. diaphragm 3. disc 4. stem 5. valve 6, handwheel.
Main dimension parameters
公稱通徑 | 公稱壓力 MPa | 工作壓力 MPa | L mm | SW mm | b mm | H1 mm | b mm | D0 mm | 質量 Kg/kilos | |
DN | G | |||||||||
8 | 1/4 | 1.6 | 1.6 | 50 | 20 | - | 60 | 66 | 45 | 0.6 |
10 | 3/8 | 50 | 24 | - | 45 | 0.7 | ||||
15 | 1/2 | 65 | 38 | 8 | 84 | 92 | 50 | 0.8 | ||
20 | 3/4 | 85 | 40 | 12 | 93 | 103 | 50 | 1.1 | ||
25 | 1 | 110 | 48 | 18 | 106 | 120 | 66 | 1.9 | ||
32 | 1 1/4 | 120 | 58 | 18 | 137 | 156 | 96 | 3.3 | ||
40 | 1 1/2 | 140 | 69 | 18 | 142 | 163 | 96 | 4.2 | ||
50 | 2 | 165 | 85 | 20 | 167 | 192 | 96 | 5.8 | ||
65 | 2 1/2 | 1.0 | 203 | 60 | 20 | 190 | 225 | 165 | 9.5 | |
80 | 3 | 254 | 105 | 32 | 206 | 246 | 230 | 16.2 | ||
